Product Description

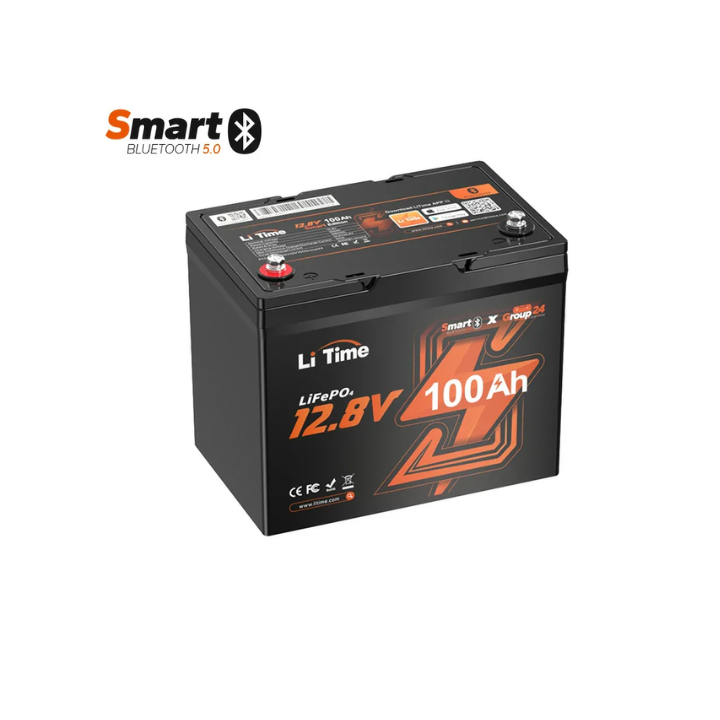

LiTime's latest 12V100Ah Group 24 Smart LiFePO4 battery is equipped with Smart Bluetooth 5.0. You can connect the LiTime APP to monitor the battery's overall status and data in real time, including SOC, charge/discharge/idle state, battery voltage, current, Power, remaining capacity, battery temperature and life cycles, scan the battery barcode to connect it automatically and use it to control discharge or turn it off.
- Bluetooth 5.0, Auto-connection, smart control & monitor battery with LiTime App
- Low-temp cut-off protection secures your battery in cold weather
- LiTime's latest BMS provides 20+ protections and warnings
- Automatic Overload Protection & Recovery-No User Intervention Required
BATTERY
Cell Type：LiFePO4 Prismatic
Warranty：5 Years
Cycle Life：4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：12.8V
Rated Capacity：100Ah
Energy：1280Wh
Max. Expansion (Parallel & Series)：4P4S
Internal Resistance：≤40mΩ
Certifications：UL, FCC, CE, RoHS, UN38.3
Bluetooth：√
BMS
BMS：100A
Max. Continuous Output Power：1280W
Max. Continuous Charge Current：100A
Max. Continuous Discharge Current：100A
Max. Discharge Current 1 Second：500A
CHARGE
Charge Method：CC/CV
Charge Voltage：14.4V ± 0.2V
Recommend Charge Current：20A (0.2C)
TEMPERATURE
Charge Temperature：0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：-10℃ to 50℃ / 14℉ to 122℉

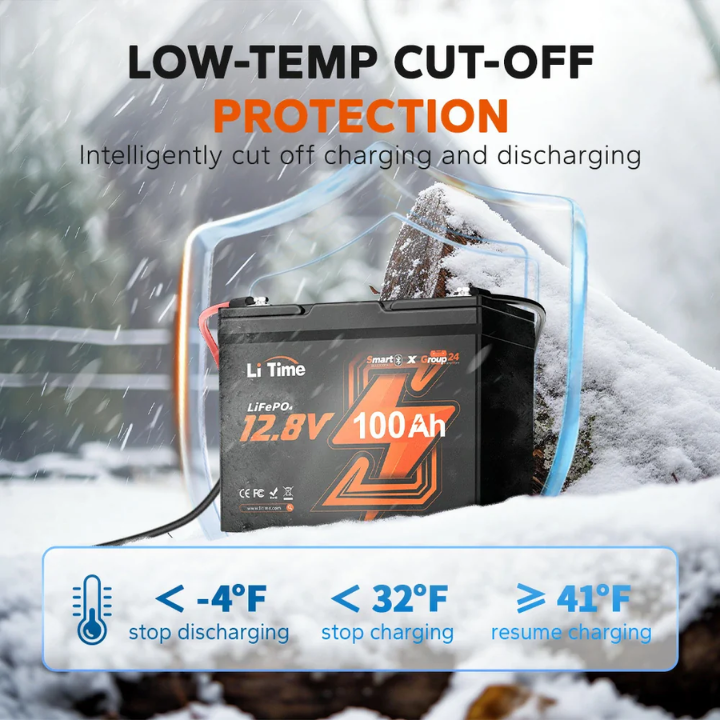

Low-Temperature Protection：Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery：Yes (41℉/5℃)
OTHERS
Terminals：M8 bolts
Weight Approx.：21.87 lbs

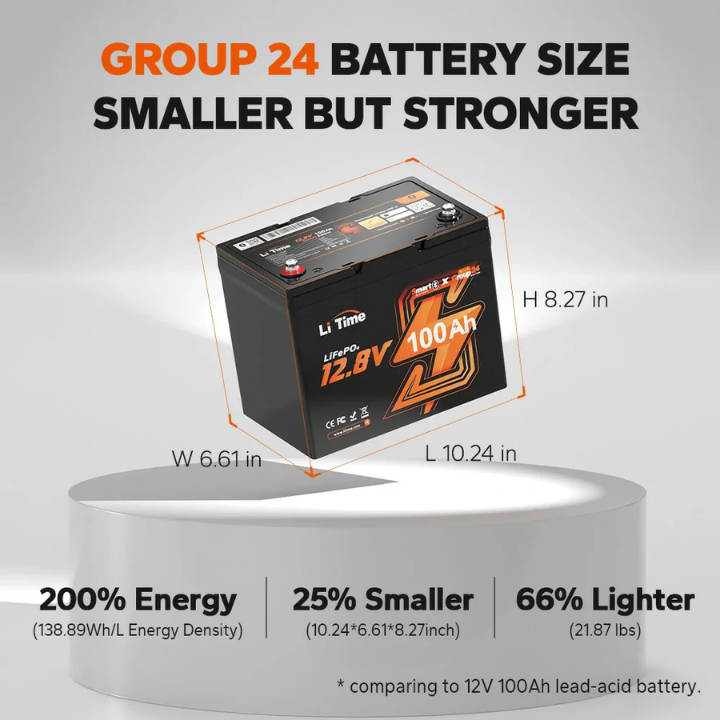

Size：10.24*6.61*8.30 in
Housing Material：ABS
Protection Class：IP65
