Product Description

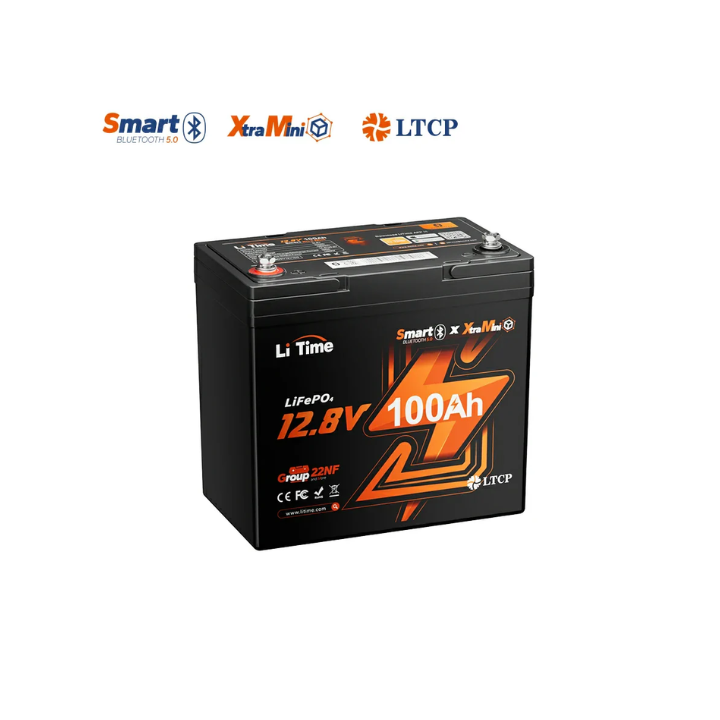

The 12V 100Ah Xtra-Mini supports multiple charging methods for convenience and efficiency. Designed to fit perfectly in tight spaces, effortlessly powering small trucks, campers, trailers, teardrop trailers, and kayaks. It's the ideal choice for RVs, electric boat motors, mobility scooters, camping, off-grid storage, and home backup power.Â
Cycle Life：4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DODNominal Voltage：12.8V
Rated Capacity：100Ah
Energy：1280Wh
Max. Expansion (Parallel & Series)：4P4S
Internal Resistance：≤40mΩ
Certifications：FCC ID, UL-1973, CE, RoHS, UN38.3, MIC
Bluetooth：√
BMS
BMS：
100A Max. Continuous Output Power：
1280W Max. Continuous Charge Current：
100A Max. Continuous Discharge Current：
100A Max. Discharge Current 1 Second：500A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4 ± 0.2V
Recommend Charge Current：
20A
OTHERS
Terminals：M8 Bolts
Weight Approx.：19.13 lbs
Size：L9.02*W5.43*H8.19 in (Group 22NF Size)
Housing Material：ABS
Protection Class：IP65
